Kinetic Metallization: Handheld Gun
Handheld Gun Specifications
Friction compensated sonic nozzle
2.5 kW Thermal Conditioning Unit
Powder Injection Tube
Weight: X lbs (X kg)
Size: X in3 (X cc)
Compatible with KM-PCS

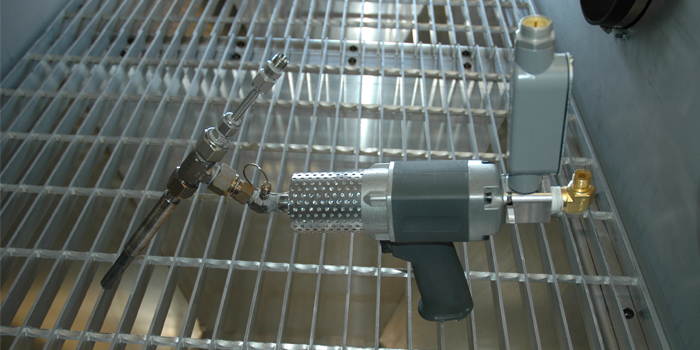

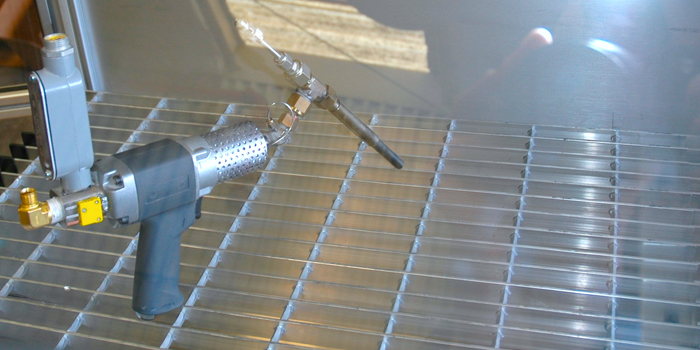

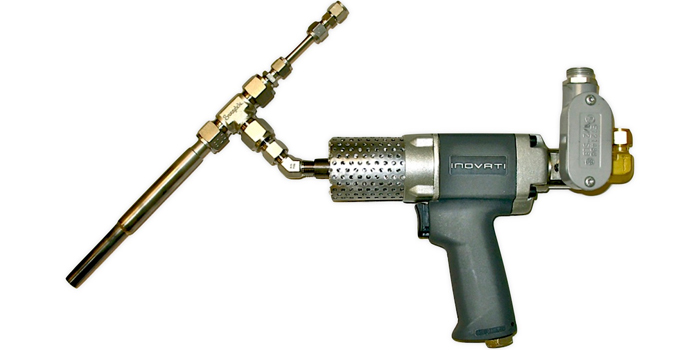

The KM-Handheld Gun is a lightweight Gun used for manual operation of Kinetic Metallization. With its robust design, the KM-Handheld Gun is capable of in field coating repair and maintenance. The design was originally conceived for in field and portable operation, due to the use of universal components between all Inovati KM-Guns, the KM-Handheld is also compatible with fixed KM systems as well.
The KM-Handheld Gun is standard with the KM Mobile coating system and can be added as an optional extra to the Km Production Coating System. The 2.5 kW Thermal Conditioning Unit of the KM-Handheld Gun can heat accelerant gases up to a maximum temperature of 600ºC. Fluidized powder is injected from the Powder Fluidizing Unit into the KM-Handheld Gun through the Powder Injection Tube. The powder mixes with heated gas within the mixing chamber and is sent through the patented friction compensated sonic nozzle. The innovative design allows for materials to be embedded onto a substrate with superior coating properties.
