Kinetic Metallization: Production Coating System
KM-PCS
Fully Integrated Package Includes:
KM-Raster Gun
Optional KM-ID Gun
Optional KM-Handheld Gun
3.75kW Thermal Conditioning Unit
Ultra-fine powder enabled Powder Fluidizing Unit (1 liter capacity)
Secondary ultra-fine powder enabled Powder Fluidizing Unit (1 liter capacity)
Closed loop pressure control with gas flow metering and user defined gas selection

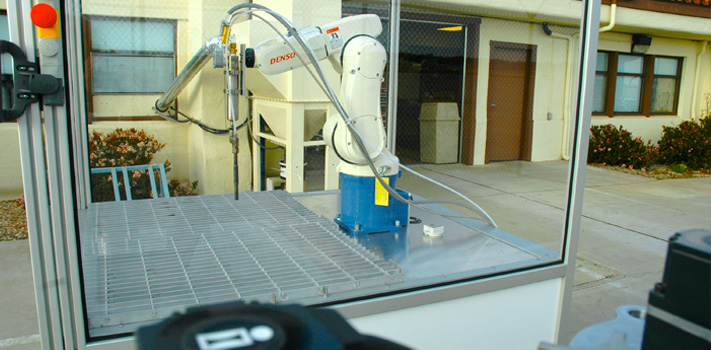

IP65 6-Axis robot with integrated motion control software
Optional 7th-Axis rotary-stage with coordinated motion
RIA compliant Spray Enclosure for unobstructed viewing and noise minimization with exhaust gas outlet
Optional Spray Enclosure configuration for hand-held operation
Control Cabinet with User Interface Control Panel for human-machine Interfacing
Real-time system control

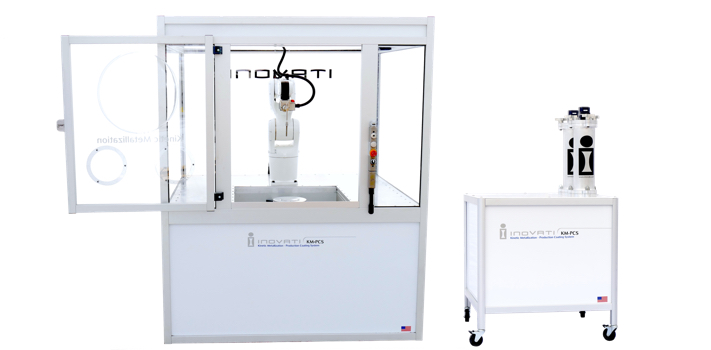

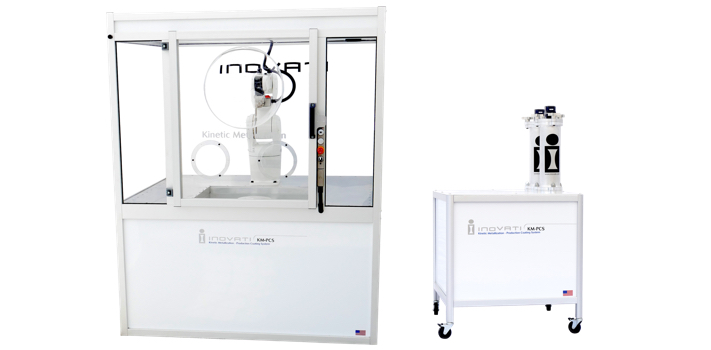

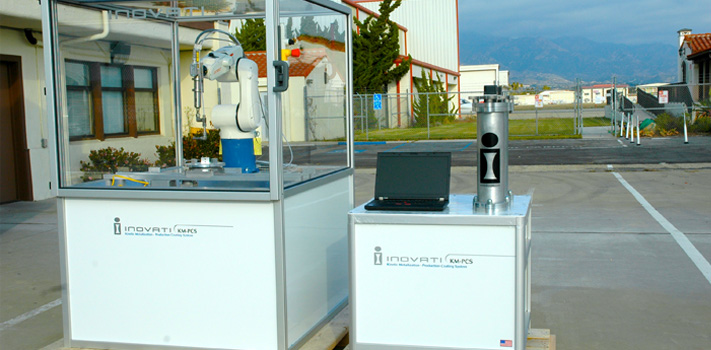

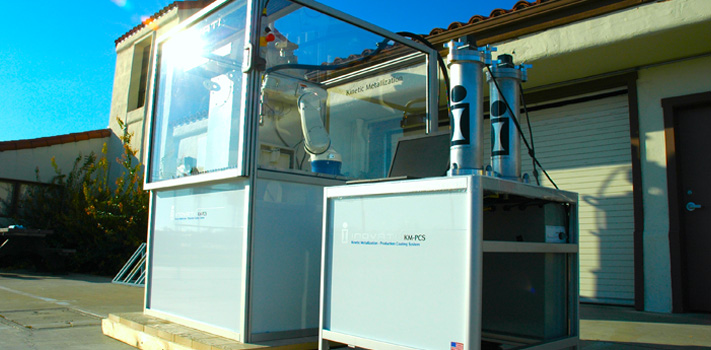

KM-PCS
The KM-PCS is a complete coating system ready to take your coating into production. With dual feeders this system is capable of spraying parts continuously, in-situ blending of powders (different powders in each PFU), or as separate layers. The system is automated via a graphical user interface (GUI) to control the pressure, temperature, feed rate(s), and raster over the surface of the part. The automated system protects the operator from user error, while also keeping a real-time data log of system parameters. This log can be used to track down issues in a coating or repeat a coating at a later date.
