Kinetic Metallization: Coating Development System

KM-CDS

Fully Integrated Package Includes:

  • KM-Raster Gun

  • Optional KM-ID Gun

  • Optional KM-Handheld Gun

  • 3.75kW Thermal Conditioning Unit

  • Ultra-fine powder enabled Powder Fluidizing Unit (1 liter capacity)

  • Secondary ultra-fine powder enabled Powder Fluidizing Unit (1 liter capacity)

  • Closed loop pressure control with gas flow metering and user defined gas selection

  • IP65 6-Axis robot with integrated motion control software

  • Optional 7th-Axis rotary-stage with coordinated motion

  • RIA compliant Spray Enclosure for unobstructed viewing and noise minimization with exhaust gas outlet

  • Optional Spray Enclosure configuration for hand-held operation

  • Control Cabinet with User Interface Control Panel for human-machine Interfacing

  • Real-time system control

    •


    KM-CDS

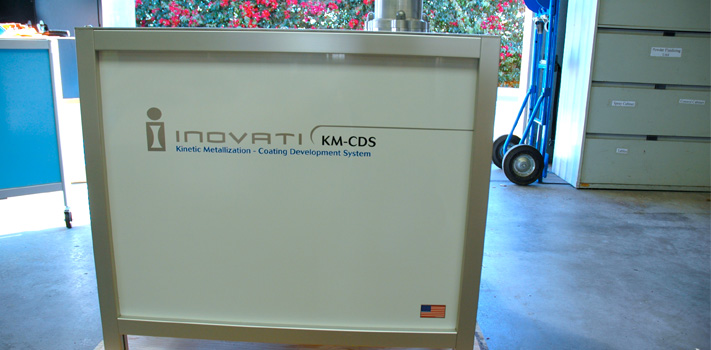

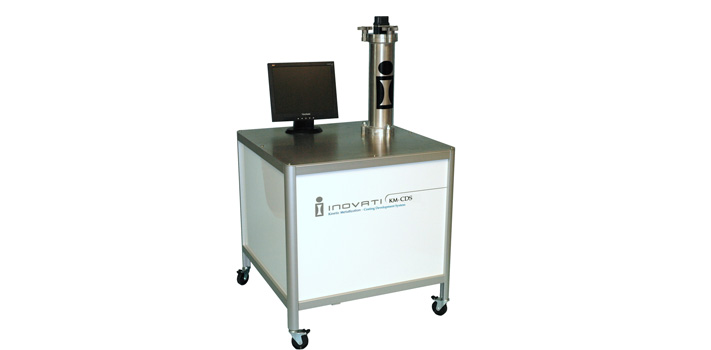

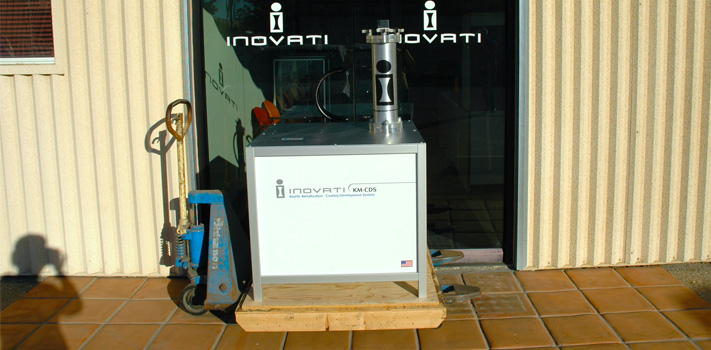

    The KM-CDS is a complete system designed with coating development in mind. This system includes Inovati's patented friction compensated sonic deposition nozzle, single Powder Fluidizing Unit (PFU), a Thermal Conditioning Unit (TCU), Graphical User Interface (GUI), data logging, and a 4-Axis or 6-Axis robot to manipulate the deposition nozzle over the coating surface. It is compatible with the standard KM-Raster Gun as well as the KM-ID gun.

    Use this system to test and validate coatings and coating recipes before moving into production.

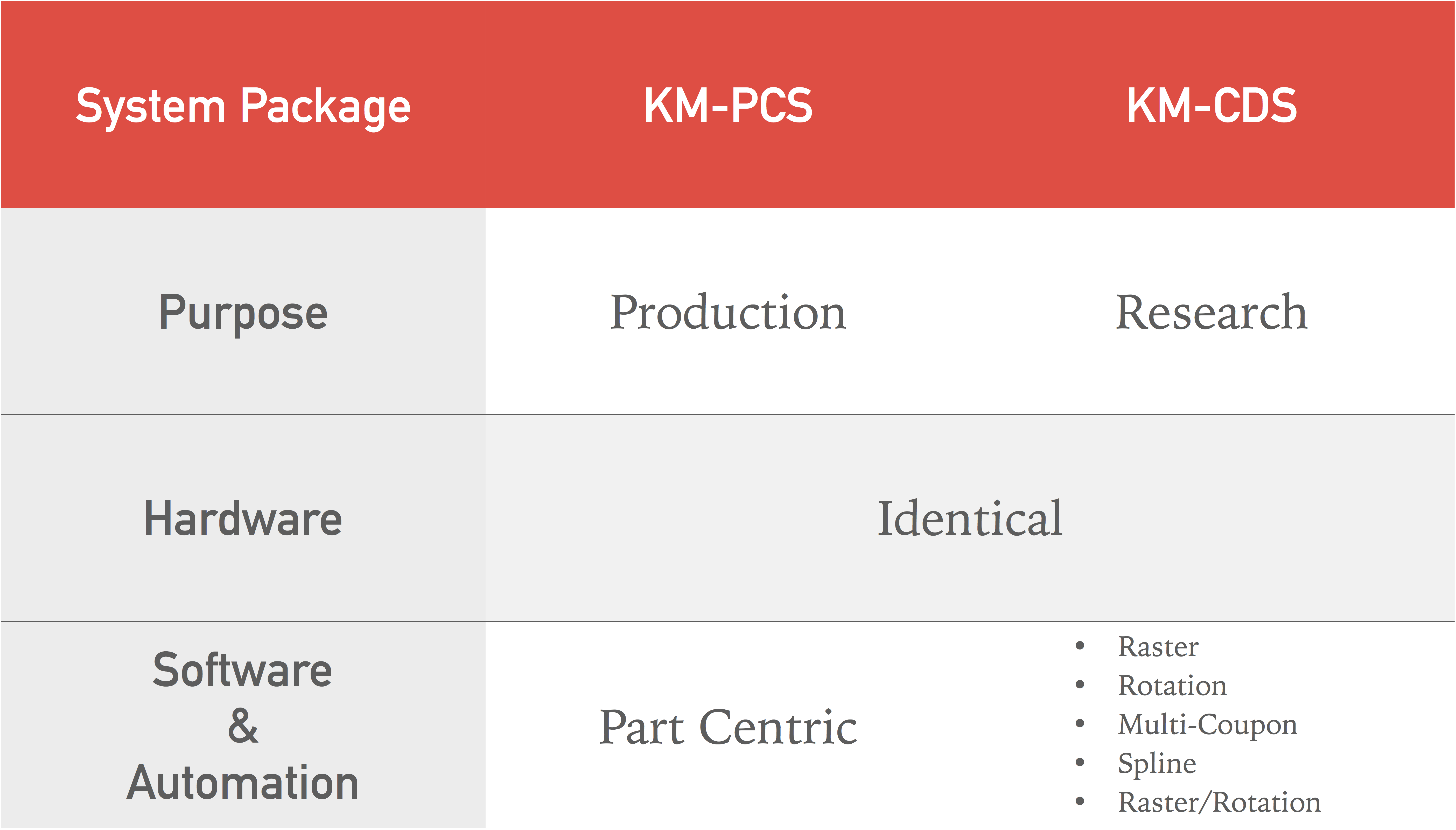

    System Specs KM-MCS KM-PCS
